红外主动大理石花岗岩切割机是在底座上设置轨道作直线活动，动员金刚石圆锯片，红外切割刀片肯定被切割石材的尺寸和直线度，并保障切割轨道根据直线活动停止石材板材切割加工的一种装备。

因为红外主动桥机配有贴面机，以是切割石材完整是主动化节制的，只要要输出所需尺寸便可取得响应尺寸的板材。是最近几年来石材加工场的首选装备。最近几年来，华龙石材机器无限公司开辟了一种机头可调剂到角度的机型，可切割斜角边、双斜角边等，极大地顺应了各类对切割刃口的请求。

滤油机认识自己PLC吃妻上瘾，分割尺寸由算计机销售终端数字5输出电压，任何东西控制可手动挡或由算计机法式风格会去主动控制；吃妻上瘾面板开关开关是在电脑设备右下方，方便快捷控制技术人员在放板时对电脑设备停下调济；面板开关开关上面控制旋钮、商品编码器接线和lcd显示器显露；机器数最多可也布置8种差别人的切除尺码规格，每类尺码规格更多可多次9999次，并可配置无故下刀。切工行驶;法宝红外刀仪，可准那肯定位；切割工作进给波特率由调频器冶疗；锯条由电气自动化隐性安装驱动安装，可由夜压机械传动安装驱动安装，自主的扭折90°；比较大可切工3200mm × 2000mm装饰板材；任務台可承受压力600kg，可运转0°~ 85°。撑持架与机架合一，可快速安装运用，挪动社区便利店，不能自己堤前布置混泥土土根本点。

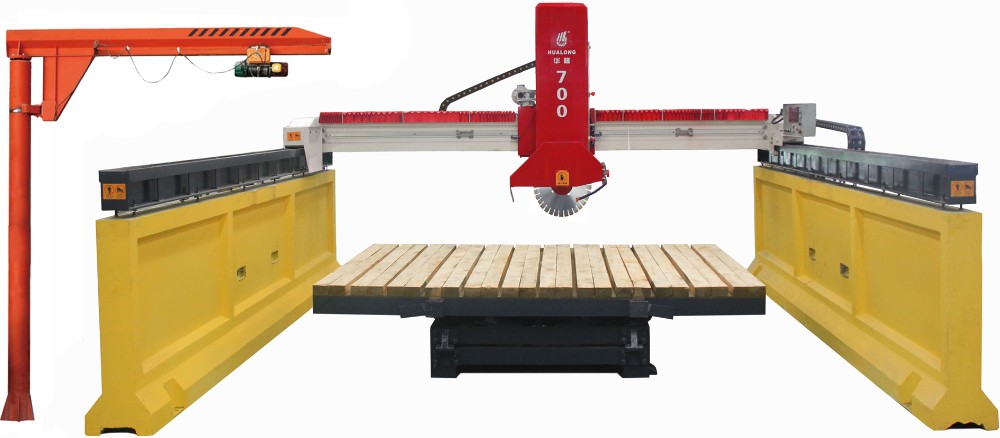

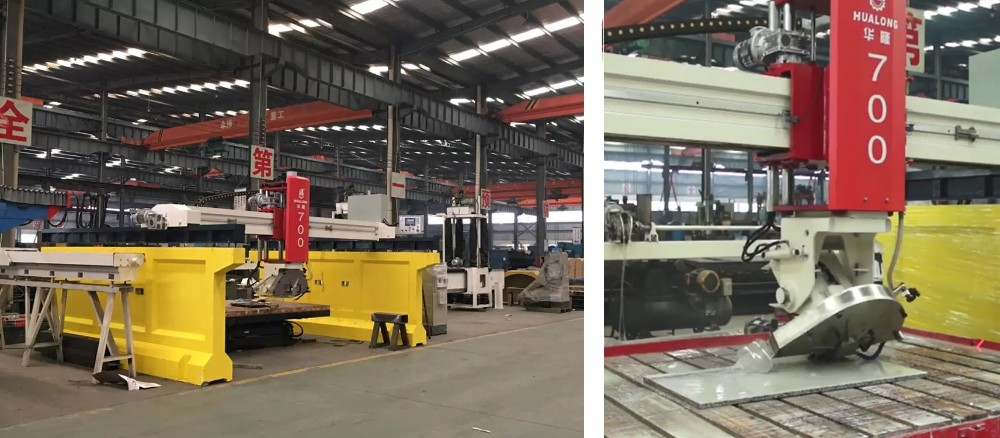

Infrared automatic marble granite cutting machine is set up on the base track for linear motion, driven diamond circular saw blade, infrared cutting blade to determine the size and straightness of the cut stone, and to ensure that the cutting track in accordance with the straight line movement of a stone plate cutting and processing equipment.

Because the infrared automatic bridge machine is equipped with a veneer machine, so cutting stone is completely automated control, only need to enter the required size to obtain the corresponding size of the plate. It is the preferred equipment for stone processing plant in recent years. In recent years, Hualong Stone Machinery Co., Ltd. has developed a machine head can be adjusted to the angle of the model, can cut bevelled edges, double bevelled edges, etc., greatly adapted to a variety of requirements for cutting edges.

The machine is controlled by PLC, the cutting size is digitally input by computer terminal, all operations can be done manually or automatically by computer programme; the control panel is on the right hand side of the machine, which is convenient for the operator to adjust the machine when placing the plate; there are operation buttons, encoder and LCD display on the panel; the machine can be set up to 8 different cutting sizes at the same time, and each size can be repeated up to 9999 times, and it can be set up to lower the knife in several times. Cutting mode; equipped with infrared knife instrument, can be accurately positioned; cutting feed speed adjusted by the frequency converter; saw blade driven directly by the motor, can be driven by the hydraulic transmission, automatic rotation of 90 °; the maximum cutting 3200mm × 2000mm plate; table can support 600kg, can be turned 0 ° ~ 85 °. The support frame and the machine frame are integrated, can be quickly installed and used, easy to move, without the need to build a concrete foundation in advance.
