荒料切割装备

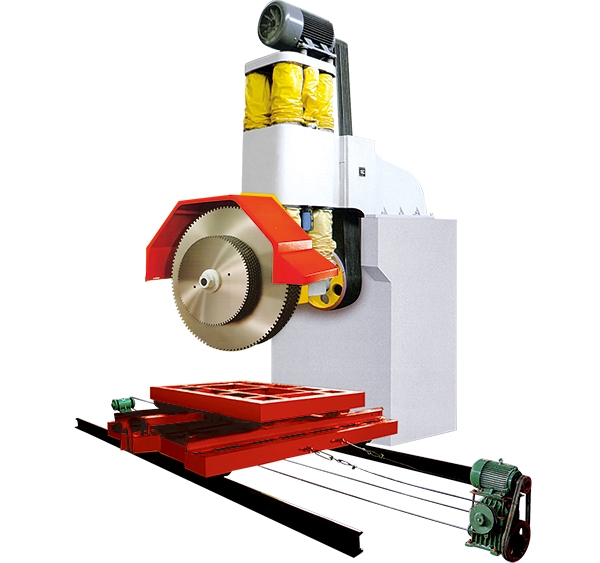

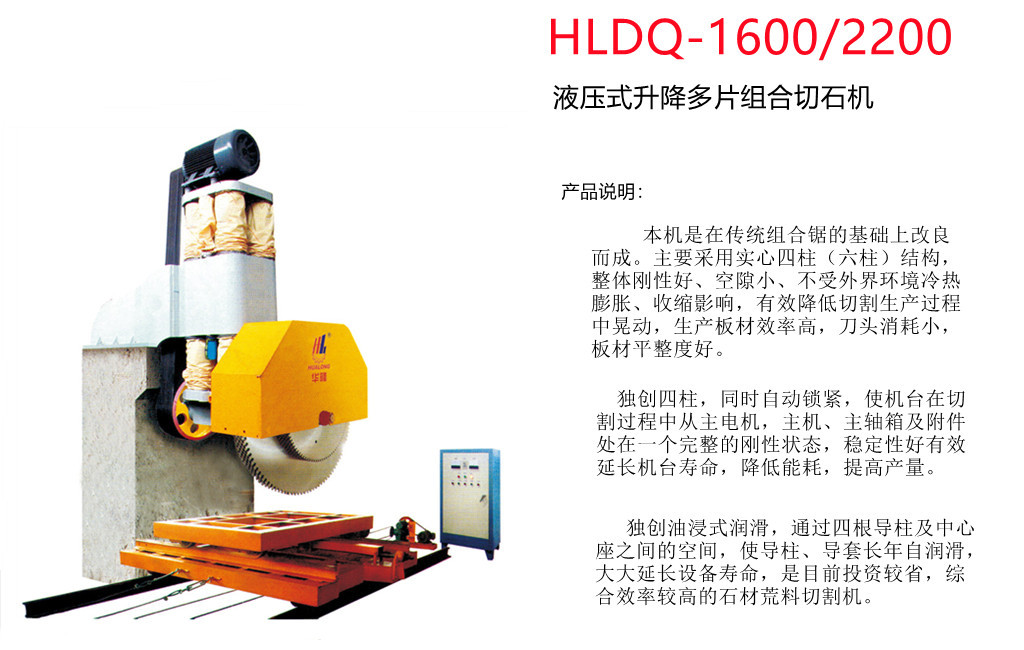

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液压式起落多片组合切石机

领跑智能制作新“石”代

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液压式起落多片组合切石机

归属品牌标志:华隆 所在区域种别:荒料割切的装备

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

电话营销可空间说说德律风座机号码,咱门会与您洽谈!

Purchase please leave a message phone and email, we will contact you!



液压式单臂多片锯 HLDQ-1600 合用于切割石块,如花岗岩、大理石等。

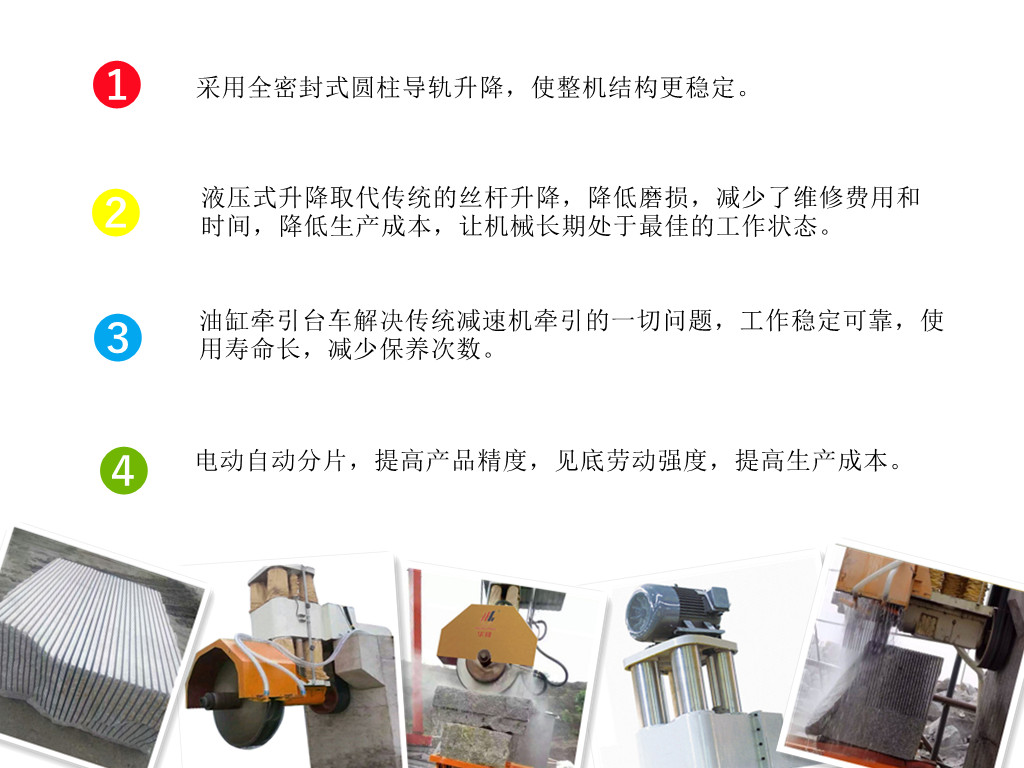

首要特色
(1)接纳全密封的四缸导向轨停止起落操纵,这使得全部布局加倍安定,削减了磨损,并能永劫间坚持机器处于最好任务状况。
(2) 电动主动切片分手手艺进步了产物的精度,下降了休息强度,并进步了出产效力。

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600  is suitable  for cutting stone block⛎s, such as  granite, 🐭marble.

Main Features

1)  Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.

2)  Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!





Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆设备,数控机床五轴联动桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石切机,石手工工艺场武器法宝,石磨光机,石磨光武器法宝,石手工工艺当中,橱柜柜门手工工艺当中,水刀,水刀切割器机,露天煤矿开发利用武器法宝,露天煤矿圆轮锯,圆轮双刀锯,露天煤矿机,露天煤矿锯。



称号 Name 单元/Unit HLDQ-1600/6 HLDQ-1600/10
HLDQ-1600/16
HLDQ-1600/12
锯片直径 Btade diameter
mm
Φ1600,Φ940
Φ1600,Φ940
Φ1600,Φ940
Φ1200
锯片数目 Number of blades
pc

6(3-Φ1600,3-Φ940)

6(3-Φ1600,3-Φ940)
6(3-Φ1600,3-Φ940)
12(Φ1200)
起落路程 Blade lifting stroke
mm
1000 1000 1000
1000
最大切割尺寸 Max.cutting size mm
3500x1300x950 3500x1300x960 3500x1300x950 3500x1300x950
路程机电功率 Power of stroke motor kw
2.2 2.2 2.2 2.2
起落机电功率 Power of lifting motor kw
22.2 2.2 2.2 2.2
主机电功率 Power of main motor
kw
37 45 55 55
耗水量
Water consumption L/min 37 42 42 42
总功率
Gross power kw 41.4 49.4 59.4 59.4
形状尺寸
Dimensions(L x W x H) mm 8500x4000x5500 8500x4000x5500 8500x4000x5500 8500x4000x5500
零件分量 Gross weight kg 6000 7800 8500 8500
和谐提示语短信:倘若想体会较多要点,型号、规范化、报价和外理行动计划,请商谈我们。
